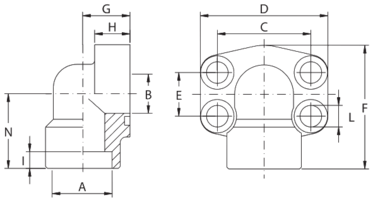

| Flange a 90° a saldare di tasca tubo metrico |
 |
SERIE 3000 | |||||||||||||||||
| dim | codice | A | B | C | D | E | F | G | H | I | L | N | vite-m | vite-u | or | peso | WP |
| 1/2 | AFS08090SA20 | 20.3 | 13 | 38.1 | 54 | 17.48 | 60 | 20 | 16 | 10 | 9 | 37 | M8x30 | 5/16x1"1/4 | 4075 | 0.28 | 345 |
| 3/4 | AFS10090SA25 | 25.3 | 19 | 47.63 | 65 | 22.23 | 63 | 24 | 18 | 10 | 11 | 38 | M10x35 | 3/8x1"1/2 | 4100 | 0.45 | 345 |
| 1 | AFS10290SA30 | 30.3 | 25 | 52.37 | 70 | 26.19 | 70 | 28 | 19 | 12 | 11 | 43 | M10x35 | 3/8x1"1/2 | 4131 | 0.56 | 345 |
| 1 1/4 | AFS10490SA38 | 38.3 | 32 | 58.72 | 79 | 30.18 | 85 | 34 | 21 | 14 | 11.5 | 51 | M10x40 | 7/16x1"3/4 | 4150 | 0.89 | 276 |
| 1 1/2 | AFS10690SA50 | 50.5 | 38 | 69.85 | 93 | 35.71 | 95 | 38 | 25 | 16 | 13.5 | 56 | M12x45 | 1/2x1"3/4 | 4187 | 1.18 | 207 |
SERIE 6000 |
| dim | codice | A | B | C | D | E | F | G | H | I | L | N | vite-m | vite-u | or | peso | WP |
| 1/2 | AFS40190SA20 | 20.3 | 13 | 40.49 | 54 | 18.24 | 60 | 20 | 16 | 10 | 9 | 37 | M8x30 | 5/16x1"1/4 | 4075 | 0.28 | 414 |
| 3/4 | AFS40290SA25 | 25.3 | 19 | 50.8 | 70 | 23.8 | 70 | 28 | 19 | 12 | 11 | 43 | M10x40 | 3/8x1"1/2 | 4100 | 0.69 | 414 |
| 1 | AFS40390SA30 | 30.3 | 25 | 57.15 | 79 | 27.76 | 85 | 34 | 21 | 14 | 13 | 51 | M12x45 | 7/16x1"3/4 | 4131 | 1.11 | 414 |
| 1 1/4 | AFS40490SA38 | 38.3 | 32 | 66.68 | 93 | 31.75 | 95 | 38 | 25 | 16 | 15 | 56 | M14x45 | 1/2x1"3/4 | 4150 | 1.45 | 414 |
| 1 1/2 | AFS40590SA50 | 50.5 | 38 | 79.38 | 110 | 36.5 | 110 | 42 | 25 | 18 | 17 | 65 | M16x50 | 5/8x2" | 4187 | 2.75 | 414 |
